When selecting the right Cooling Tower Fill, material selection is one of the most important decisions. Different cooling tower projects have different working conditions, and choosing between PVC, PP, and CPVC materials can directly affect cooling efficiency, service life, and maintenance cost.

In many cooling tower replacement projects, customers often ask: “Which material is better for cooling tower fill?” The answer depends on water temperature, water quality, cooling tower design, and operating environment. PVC Cooling Tower Fill, PP Cooling Tower Fill, and CPVC Cooling Tower Fill each have their own advantages.

This guide explains the differences between these materials from an engineer’s point of view, helping cooling tower manufacturers, contractors, and end users choose the right Cooling Tower Media for their applications.

What Is Cooling Tower Fill and Why Does Material Matter?

Cooling Tower Fill, also called tower fill, Cooling Fill, or Cooling Tower Media, is the heat transfer component installed inside a cooling tower. Its main function is to increase the contact area between air and water.

During operation, warm water flows through the fill surface while air passes through the fill structure. The specially designed surface creates a thin water film, improves evaporation, and transfers heat more effectively.

A good quality Cooling Tower Fill helps improve:

• Heat exchange efficiency
• Cooling tower capacity
• Water distribution performance
• Energy saving performance
• Long-term operation stability

The material of the fill is important because cooling towers often operate continuously for many years. Temperature, chemicals, UV exposure, and water conditions can affect the durability of the fill material.

Common Materials Used for Cooling Tower Fill

Currently, the most common materials used for modern film fill cooling tower applications are PVC, PP, and CPVC.

PVC Cooling Tower Fill

PVC is the most widely used material for cooling tower fill because it offers a good balance between performance and cost. It is commonly found in commercial HVAC cooling towers, industrial cooling systems, and replacement projects.

PVC sheets can be processed into different patterns, especially Corrugated Fill designs, which increase the contact area between air and water.

Advantages of PVC Cooling Tower Fill

• Excellent cooling performance
• Cost-effective solution
• Lightweight and easy installation
• Good chemical resistance
• Suitable for normal temperature applications

For most standard cooling towers, PVC Cooling Tower Fill is still the first choice because it provides reliable performance at a reasonable price.

PP Cooling Tower Fill

PP (Polypropylene) Cooling Tower Fill is becoming more popular in industrial cooling applications, especially in regions with high ambient temperatures such as Southeast Asia and the Middle East.

Compared with PVC, PP has better temperature resistance and stronger resistance to certain chemicals. It is a preferred option when the cooling tower operates under more demanding conditions.

Advantages of PP Cooling Tower Fill

• Higher temperature resistance
• Excellent chemical stability
• Longer service life
• Better performance in harsh environments
• Suitable for industrial cooling systems

PP Cooling Tower Fill is commonly selected for power plants, process cooling systems, and factories where cooling water conditions are more challenging.

CPVC Cooling Tower Fill

CPVC (Chlorinated Polyvinyl Chloride) is a modified PVC material with improved temperature resistance and chemical performance.

Although CPVC Cooling Tower Fill is less common than PVC and PP, it can be a good solution for special applications requiring higher temperature resistance while maintaining the advantages of PVC-based materials.

Advantages of CPVC Cooling Tower Fill

• Higher temperature capability than standard PVC
• Good corrosion resistance
• Suitable for special industrial environments
• Stable performance under continuous operation

PVC vs PP vs CPVC Cooling Tower Fill Comparison

Cooling Tower Fill Types According to Tower Design

Choosing the correct material is important, but selecting the correct fill structure is equally important. Different cooling tower designs require different types of fill.

Counterflow Film Fill

Counterflow Film Fill is designed for counterflow cooling towers where water flows downward and air moves upward through the fill.

This type of Film Fill usually features vertical airflow channels and high surface area designs to improve heat transfer efficiency.

Advantages include:

• High thermal performance
• Compact design
• Efficient water-air contact
• Suitable for limited installation space

Crossflow Film Fill

Crossflow Film Fill is mainly used in crossflow cooling towers. Air enters horizontally through the cooling tower air inlet louvers while water flows vertically downward.

A properly designed Crossflow Film Fill system works together with Cooling Tower Air Inlet Louvers and Drift Eliminators to improve overall tower performance.

Splash Grid Fill

Splash Grid Fill is different from Film Fill. Instead of creating a continuous water film, splash fill breaks water into smaller droplets.

It is usually selected for applications with poor water quality because it offers better resistance to clogging.

Cooling Tower Fill Structure and Corrugated Design

The structure of Cooling Tower Fill directly affects cooling efficiency. Modern film fills usually use a corrugated surface design.

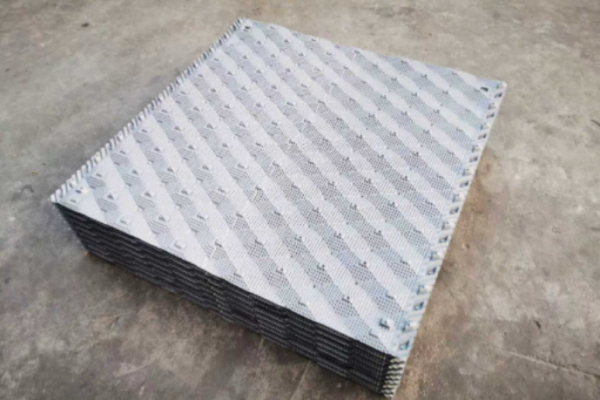

Corrugated Fill Design

Corrugated Fill increases the surface area available for heat transfer. The wave-shaped sheets create air turbulence and improve water spreading across the fill surface.

Different pitch designs are available according to cooling requirements:

• 12mm pitch for higher heat transfer performance
• 16mm pitch for general industrial applications
• 19mm pitch for better resistance to blockage

The correct corrugated structure can help achieve a better balance between cooling efficiency and airflow resistance.

Performance and Efficiency Factors of Cooling Tower Fill

Many customers focus only on material price, but actual cooling performance depends on several factors.

Important Performance Factors

• Fill material quality
• Sheet thickness
• Surface design
• Water distribution quality
• Airflow resistance
• Operating temperature

A high-quality Film Fill can reduce operating costs by improving heat exchange efficiency and maintaining stable cooling performance.

How to Choose the Right Cooling Tower Fill Material?

1. Check Operating Temperature

For normal temperature cooling systems, PVC Cooling Tower Fill is usually sufficient. For higher temperature applications, PP or CPVC may provide better reliability.

2. Consider Water Quality

Clean water systems are suitable for Film Fill designs. If the water contains more particles or dirt, Splash Grid Fill or larger pitch fill may be a better choice.

3. Match the Cooling Tower Type

• Counterflow tower → Counterflow Film Fill
• Crossflow tower → Crossflow Film Fill
• Poor water quality system → Splash Grid Fill

4. Consider Local Climate Conditions

For customers in Southeast Asia and the Middle East, high ambient temperatures should be considered when selecting materials. PP Cooling Tower Fill is often preferred for outdoor industrial applications in these regions.

Customized Size and Manufacturing Options

Every cooling tower has different internal dimensions, so customized Cooling Tower Fill is very common.

Professional manufacturers can provide:

• Customized fill block size
• Customized sheet length
• Different thickness options
• PVC, PP, and CPVC material choices
• OEM production for cooling tower manufacturers

Before production, it is recommended to provide cooling tower drawings, dimensions, water flow rate, and operating conditions to select the best Cooling Tower Media.

Daily Maintenance Tips for Cooling Tower Fill

Proper maintenance can extend the service life of Cooling Fill and keep the cooling tower working efficiently.

Recommended Maintenance Practices

• Inspect fill regularly for dirt and algae buildup
• Maintain proper water treatment
• Check damaged or deformed fill sheets
• Clean the fill according to operating conditions
• Inspect Drift Eliminators and Air Inlet Louvers together

Conclusion: Choosing the Right Cooling Tower Fill Material

PVC, PP, and CPVC Cooling Tower Fill each have their own advantages. PVC remains the most popular choice because of its excellent cost performance. PP provides better durability and temperature resistance for demanding industrial environments. CPVC is suitable for special applications requiring improved chemical and heat resistance.

The best Cooling Tower Fill is not simply the most expensive option. The correct choice depends on cooling tower design, operating conditions, water quality, and maintenance requirements.

By selecting the right Film Fill, Corrugated Fill, or Splash Grid Fill, cooling tower owners can achieve better cooling efficiency, longer service life, and lower maintenance costs.
